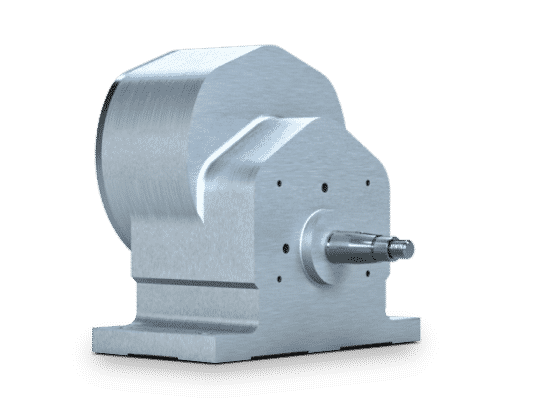

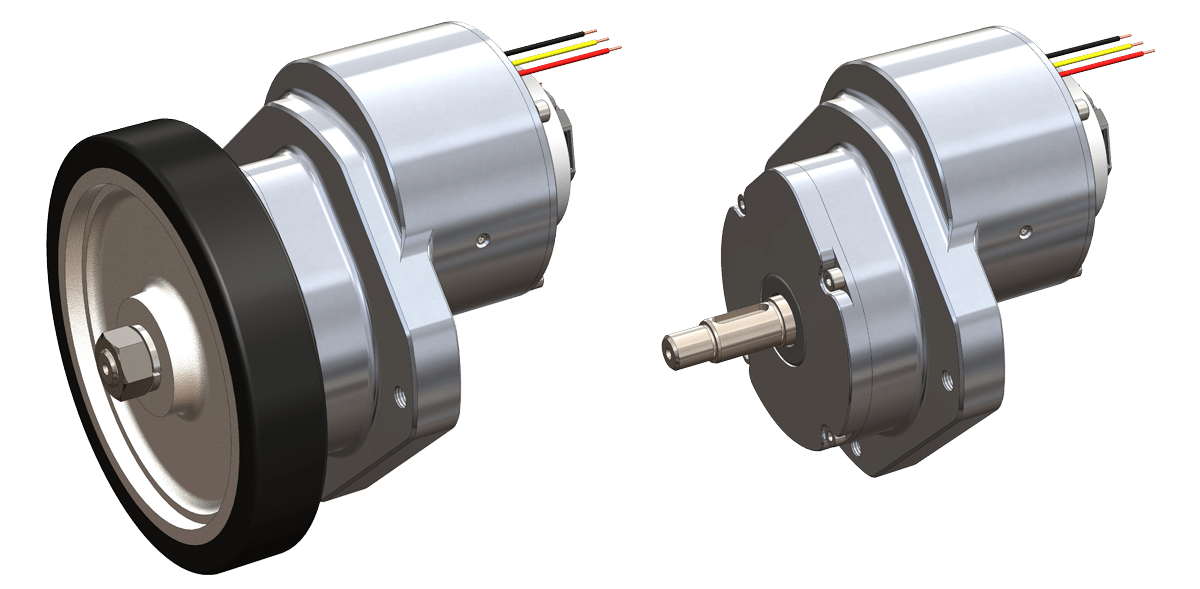

The LIGHTNING 100 is a light duty brushless wheel drive used in autonomous mobile applications. The single stage design fully incorporates the brushless motor into the gearbox housing making a compact, powerful, and durable drive system. It is optimized for use as a wheel drive with axle bearings and options available for encoders on the axle and motor shafts. Various parking brake options are also offered. We can also supply this drive with a wheel.
MARKETS
- Mobile Robot & AGVs
- Floor Care
FEATURES
- Optional Components:
Electromagnetic power-off brake, internal encoder, connectors, wheel - Voltage:
24V DC - Motor:
Brushless DC - Sealed Drive System:
Compact, designed for indoor use - Axle Diameter:
Up to .67 in [17 mm] - Gear:
Single-stage helical - Reduction ratio:
10:1 or 14:1

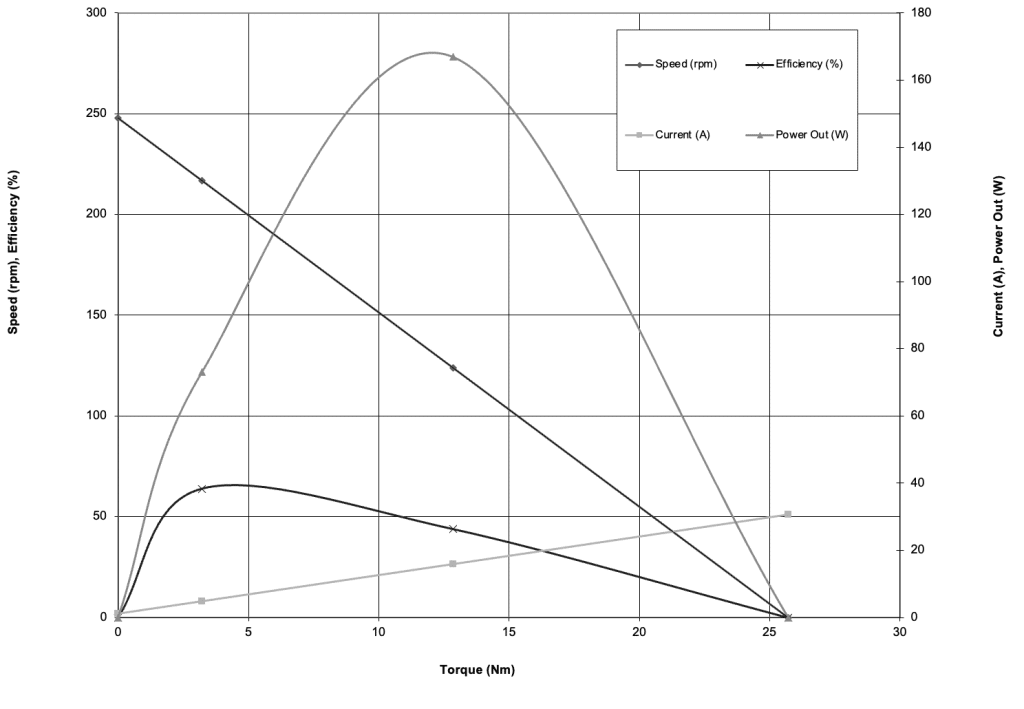

PERFORMANCE EXAMPLE
High Speed
| No Load | Peak Efficiency | Peak Power | |
|---|---|---|---|
| Torque, Nm | 0 | 3 | 13 |
| Speed, rpm | 225 | 197 | 112 |
| Current, Amps | 0.5 | 3.7 | 13.2 |
| Power Out, Watts | 0 | 67 | 153 |
| Power In, Watts | 12 | 88 | 318 |
| Efficiency, % | 0 | 76 | 48 |
