CYCLONE 700

Steerable Wheel Drive Download Datasheet

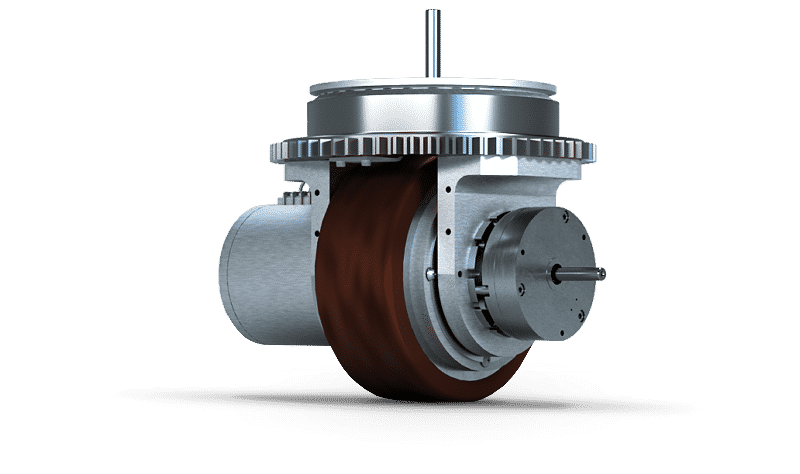

The CYCLONE 700 is a heavy duty wheel drive ideal for use in tuggers, AGVs or AGCs. It comes with a custom-designed brushless DC motor. The heavy duty wheel drive is designed for use with a separate steer motor assembly. It is used in applications where weight and durability are critical.

MARKETS

  • Material Handling
  • Mobile Robots & AGVs

FEATURES

  • Sealed drive system:
    Rugged; compact
  • Optional components:
    Electromagnetic power-off brake, internal encoder, safety encoder, connectors, brake cover, IP67 conformity
  • Voltage:
    48V DC
  • Wheel:
    Integral 200 mm diameter
  • Gearing:
    Helical compound planetary
  • Brake options available:
    Up to 12 Nm

PERFORMANCE EXAMPLES

Performance Example
Maximum Wheel Load 1,500 lbs Power Consumption Fully Loaded on 7% Grade at 300 ft/min 1.47 kW
Maximum Grade 7% Estimated Gearbox Efficiency >90%
Rolling Resistance 0.025 Acceleration on Level Floor 0.5 m/s²
Minimum Speed Loaded on Level Ground 393 ft/min Drive Backlash <1 Deg
Minimum Speed Loaded on Grade 300 ft/min Brake Holding Torque 12NM
Motor Type Brushless DC with Hall Effect Board Gear Ratio Between Encoder Shaft and Output Shaft 20:1
Power Consumption Fully Loaded at 393 ft/min 0.38 kW Thermal Switch Cutoff 105°C
