LIGHTNING 200

Right Angle Worm Drive Download Datasheet

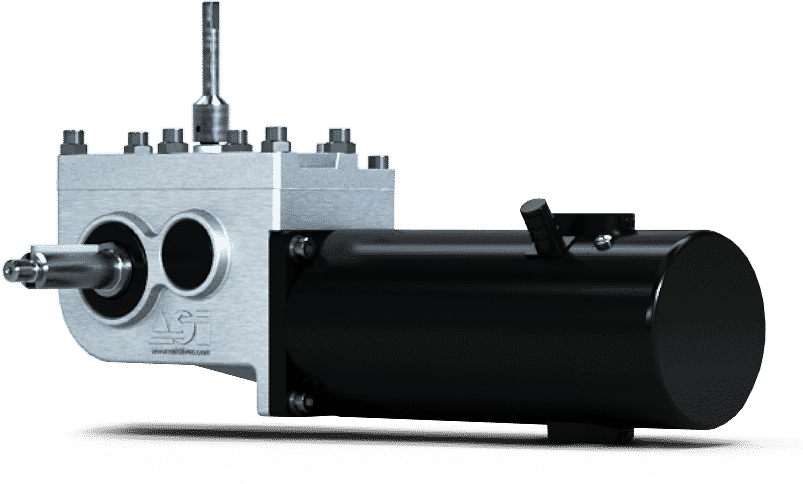

The LIGHTNING 200 is our most versatile right angle worm drive. It is a high-efficiency drive utilizing a precision worm and worm wheel with a spur gear output pass. This easy-to-install right angle worm drive includes an optional electromagnetic brake and cog release.

MARKETS

  • Mobile Robots & AGVs
  • Material Handling
  • Medical Mobility

FEATURES

  • Motors:
    Permanent magnet DC 2-pole, 3.25 in (88 mm) diameter, and 4-pole, 4.0 in (102 mm) diameter, brushless DC option available
  • Reduction ratio:
    32:1
  • Optional components:
    Electromagnetic power-off brake, internal encoder, safety encoder, connectors, brake cover, IP67 conformity
  • Encoder options available:
    Digital position and motion information

PERFORMANCE EXAMPLES

12V Option
No Load Peak Efficiency Peak Power Stall
Torque, Nm 0 15 45 87
RPM 68 56 33 0
Current, Amps 2.5 13.7 35.3 68.6
Power Out, Watts 0 88 156 0
Power In, Watts 30 164 424 823
Efficiency 0% 54% 37% 0%
24V Option
No Load Peak Efficiency Peak Power Stall
Torque, Nm 0 30 90 173
RPM 135 112 65 0
Current, Amps 5.1 27.3 71.7 133.2
Power Out, Watts 0 351 611 0
Power In, Watts 122 655 1721 3196
Efficiency 0% 54% 35% 0%
