MARK 500

Heavy Duty Single-Stage Electric Transaxle Download Datasheet

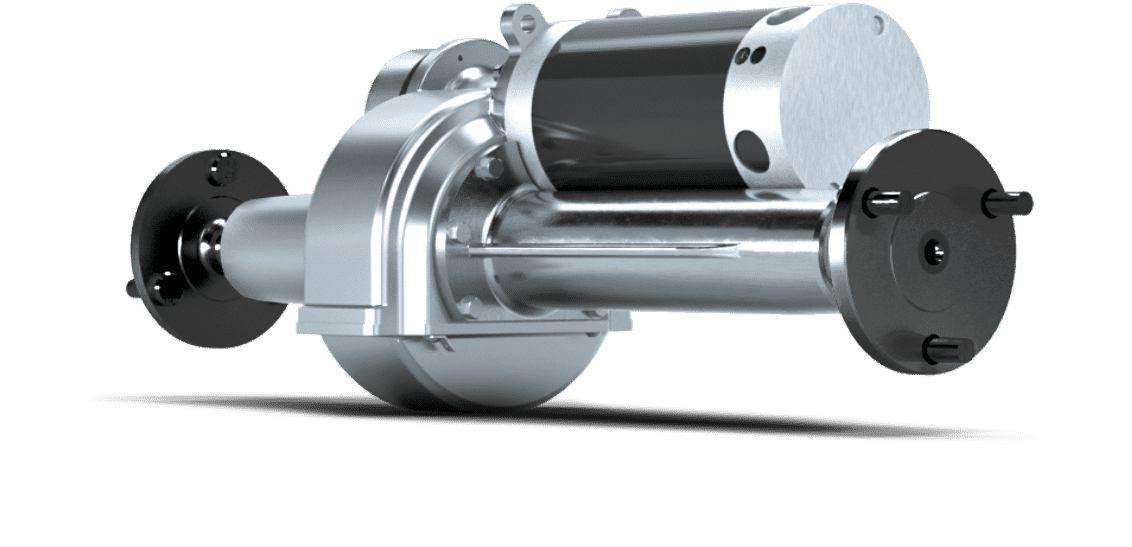

The MARK 500 is the industry standard heavy duty electric single stage transaxle. ASI was the first company to design and sell a fully enclosed transaxle and is being sold across all our markets. The MARK 500 is available as 19:1 with up to 25 mm axles and ball bearings. The transaxle has multiple motor and brake options. It is suitable for outdoor use.

MARKETS

  • Floor Care
  • Medical Mobility
  • Material Handling
  • Outdoor Power Equipment

FEATURES

  • Single-piece casting:
    Improved gear alignment; quiet operation
  • Reduction ratio:
    19.2:1
  • Fully enclosed axle:
    Mounting width flexibility
  • Optional components:
    Electromagnetic power-off brake, connectors,
    brake cover, IP67 conformity
  • Widths:
    22.35 in (567.7 mm); custom widths available
  • Motors:
    Permanent magnet DC 4-pole, 3.98 in (101 mm)
    diameter, brushless DC option available
  • Voltage:
    24V to 36V DC
  • Axle configurations:
    Hubs and custom

PERFORMANCE EXAMPLES

PMDC Motor (19.2:1 @ 24V)
No Load Typical High
Torque, Nm 0.0 29.5 118.2
RPM 116 102 58
Current, Amps 3.0 17.6 61.4
Power Out, Watts 0.0 314.9 719.7
Power In, Watts 71.1 421.8 1473.9
Efficiency 0.0% 74.7% 48.8%
BLDC Motor (19.2:1 @ 24V)
No Load Typical High
Torque, Nm 0.0 40.5 162.0
RPM 191 167 95
Current, Amps 3.8 35.2 129.6
Power Out, Watts 0.0 707.2 1616.4
Power In, Watts 90.9 845.9 3110.6
Efficiency 0.0% 83.6% 52.0%
