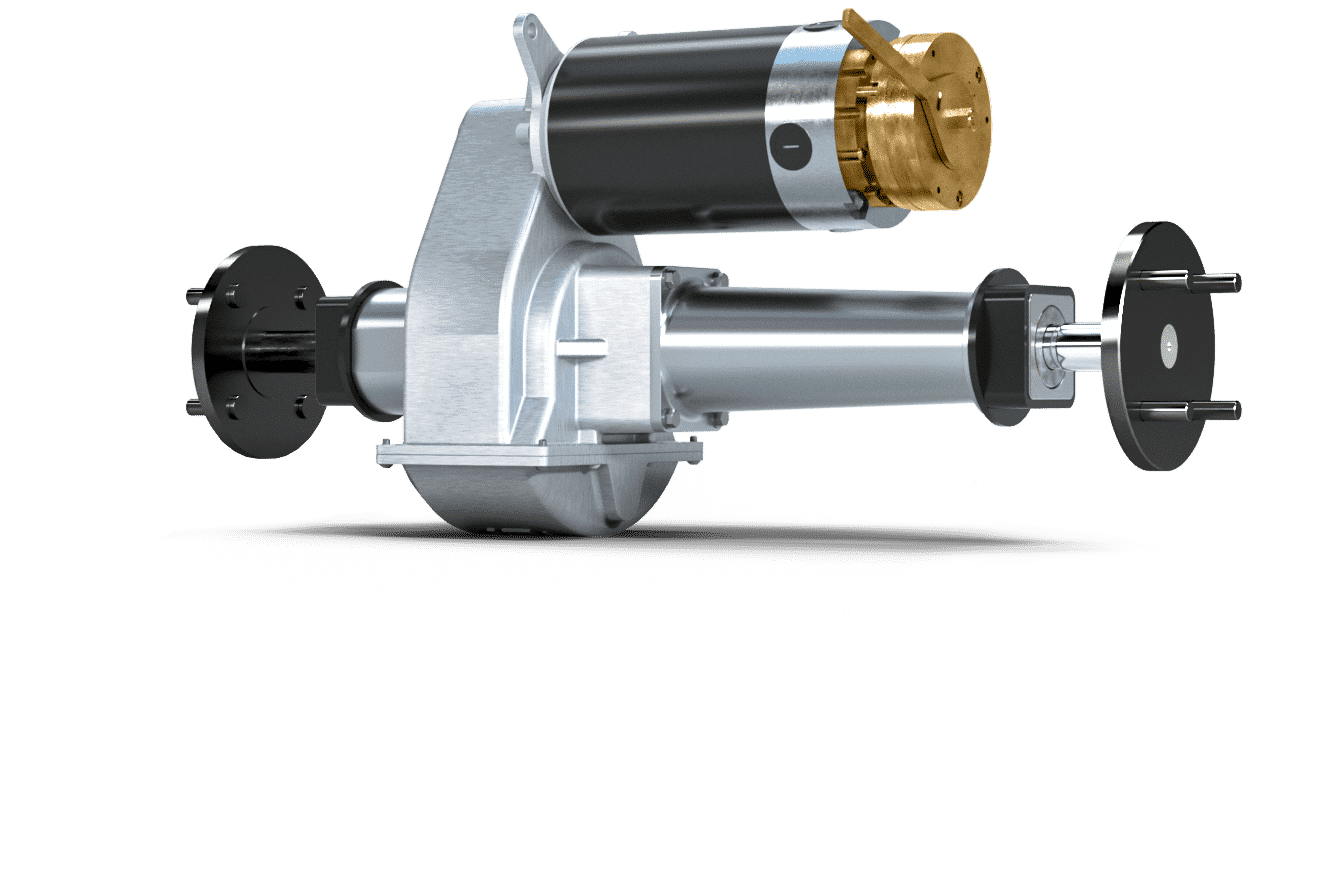

MARK 600

Heavy Duty Electric Transaxle Download Datasheet

Start Configurator The MARK 600 is the industry standard heavy duty electric transaxle. ASI was the first company to design and sell a fully enclosed transaxle and is being sold across all our markets. The transaxle drive motor has various mounting widths and multiple motor, ratio and brake options. It is suitable for outdoor use.

MARKETS

  • Material Handling
  • Outdoor Power Equipment
  • Floor Care
  • Medical Mobility

FEATURES

  • Single-piece casting:
    Improved gear alignment; quiet operation
  • Reduction ratios:
    From 11.5:1 to 36:1
  • Fully enclosed axle:
    Mounting width flexibility
  • Optional component:
    Electromagnetic power-off brake, connectors, brake cover, IP67 conformity
  • Widths:
    9.35 in (237 mm) to 23.45 in (596 mm): custom widths available
  • Motors:
    Permanent magnet DC 4-pole, 4.8 in (122 mm) diameter, brushless DC and AC available up to 6.0 in (152 mm) diameter
  • Voltage:
    24V to 48V DC
  • Axle configurations:
    Hubs and custom

PERFORMANCE EXAMPLES

High Torque Transaxle 36V 36:1
No Load Typical High
Torque, Lb-in 0.0 797 2390
Torque, Nm 0.0 90 270
RPM 90 80 60
Current, Amps 4.7 31.9 86.4
Power Out, Watts 0 754 1684
Power In, Watts 169 1148 3110
Efficiency 0.0% 65.7% 54.2%
High Speed Transaxle 24V 11.5:1
No Load Typical High
Torque, Lb-in 0.0 142 1164
Torque, Nm 0.0 16 132
RPM 283 271 155
Current, Amps 5.6 28.5 193.9
Power Out, Watts 0 451 2125
Power In, Watts 134 685 4655
Efficiency 0.0% 65.8% 45.6%
