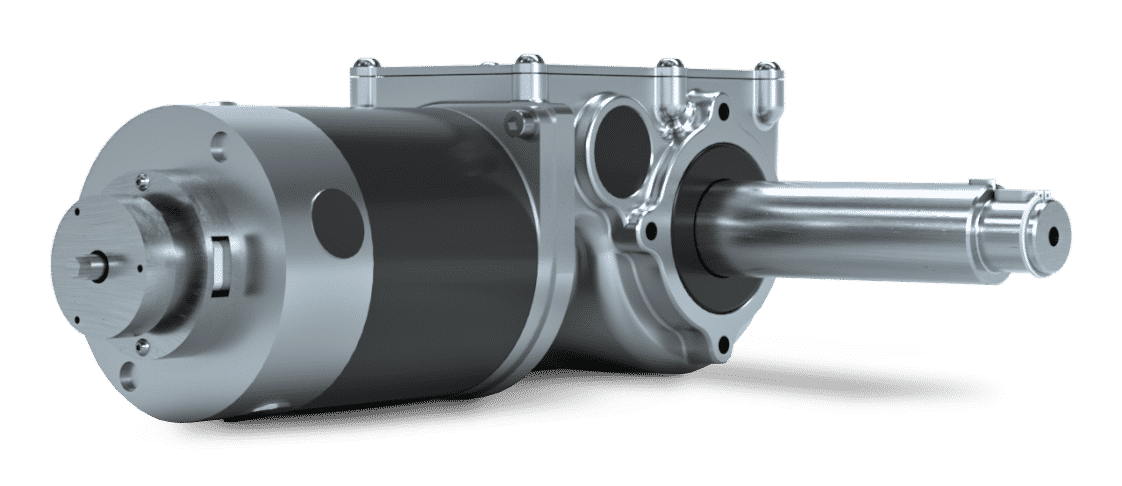

The PLUTO right angle drive unit is a compact, low-cost stair lift drive. It can hold up to 350 lbs. and is designed compactly for low ride height. It has a close-precision aluminum die cast housing that results in close tolerance and low noise. The housing also comes with integrated mounting struts. The low-profile motor comes with the option of a brake and an encoder.
Markets
- Stair Lift
FEATURES
- Motors:
Permanent magnet DC 4-pole, 3.98 in (101 mm) diameter, brushless DC option - Voltage:
24V DC - Optional components:
Electromagnetic power-off brake, internal encoder - Encoder options available:
Digital position and motion information - Output shaft:
Hardened carbon steel - Reduction ratio:
72:1 - Weight capacity:
350 lbs.
PERFORMANCE EXAMPLE
24V Option
| No Load | Typical | High | |
|---|---|---|---|
| Torque, Nm | 0 | 65 | 87 |
| RPM | 35 | 30 | 28 |
| Current, Amps | 1.5 | 14 | 18 |
| Power Out, Watts | 0 | 201 | 253 |
| Power In, Watts | 36 | 336 | 432 |
| Efficiency | 0% | 60% | 58% |
