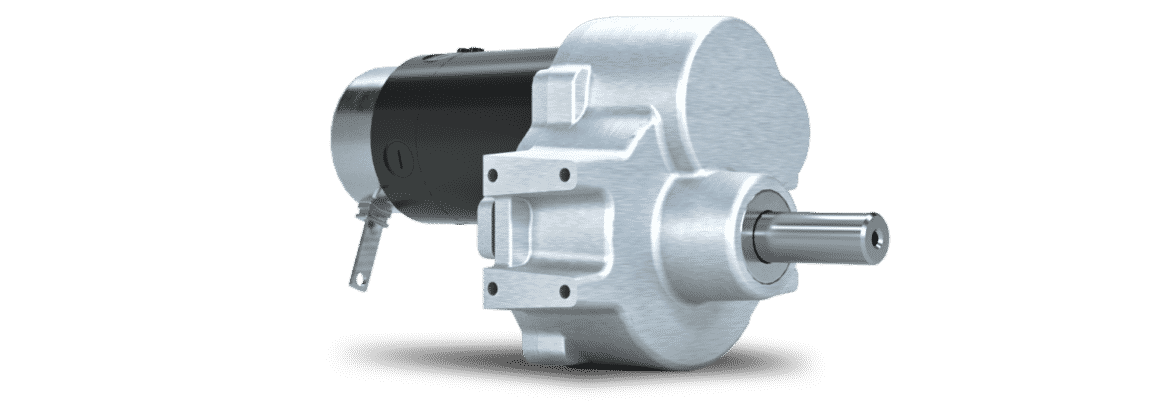

The STORM 500 is a medium duty wheel drive. The dual stage medium duty wheel drive comes with ball bearings on the output shafts. The rugged die-cast housing design and the completely sealed drive system makes it suited for outdoor use. It provides the maximum torque density at a low noise output, thanks to helical gearing and close tolerance parts.
MARKETS
- Mobile Robots & AGVs
- Medical Mobility
- Material Handling
- Outdoor Power Equipment
FEATURES
- Sealed drive system:
Rugged, usable outdoors - Optional components:
Electromagnetic power-off brake, encoders, connectors, brake cover, IP67 conformity - Voltage::
24V DC - Motor:
Permanent magnet DC 4-pole, 3.97 in [101 mm], brushless DC option available - Axle material:
Stainless steel or hardened carbon steel - Axle diameter:
Up to 25 mm, hub available - Gear set:
Two-stage helical - Reduction ratio:
25.4:1 - Brake options available:
6 to 12 Nm
PERFORMANCE EXAMPLES
High Speed
| No Load | Peak Efficiency | Peak Power | |
|---|---|---|---|
| Torque, Nm | 0 | 39 | 128 |
| Speed, rpm | 183 | 156 | 92 |
| Current, Amps | 6.5 | 37.0 | 108.3 |
| Power Out, Watts | 0 | 628 | 1231 |
| Power In, Watts | 156 | 889 | 2599 |
| Efficiency, % | 0 | 71 | 47 |
High Power
| No Load | Peak Efficiency | Peak Power | |
|---|---|---|---|
| Torque, Nm | 0 | 80 | 265 |
| Speed, rpm | 131 | 112 | 66 |
| Current, Amps | 7.6 | 49.4 | 147.1 |
| Power Out, Watts | 0 | 930 | 1824 |
| Power In, Watts | 182 | 1186 | 3529 |
| Efficiency, % | 0 | 78 | 52 |
