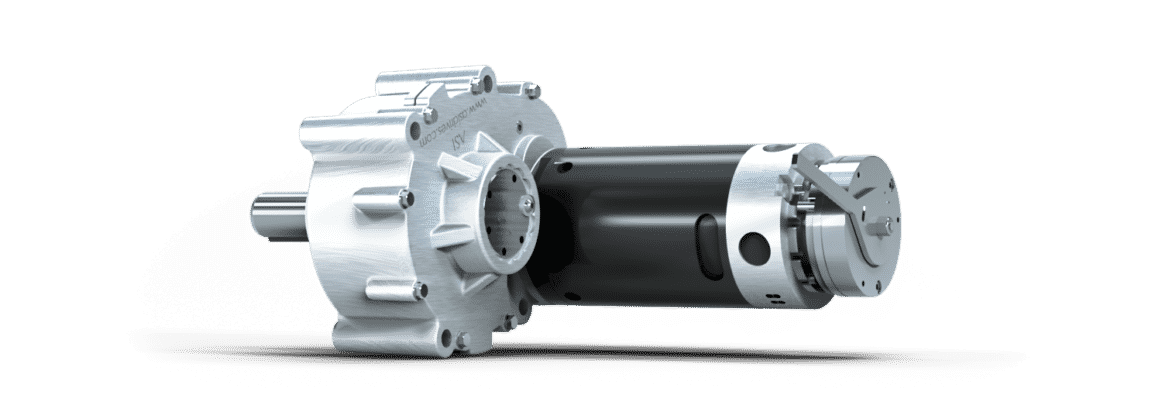

The THUNDER 1500 is a heavy duty dual stage helical wheel drive. It is ideal for applications where a high amount of weight needs to be moved. The dual stage helical wheel drive has a high-capacity output shaft and is ideal for applications with large wheels.
MARKETS
- Material Handling
- Outdoor Power Equipment
- Mobile Robot & AGVs
FEATURES
- Sealed drive system:
Rugged; usable outdoors - Optional components:
Electromagnetic power-off brake, internal encoder, safety encoder, connectors, brake cover, IP67 conformity - Motors:
Permanent magnet DC 4-pole, 4.8 in (122 mm) diameter, brushless DC and AC available up to 6.0 in (152 mm) diameter - Encoder options available:
Digital position and motion information - Axle:
Hardened carbon steel - Gear:
Dual stage helical - Reduction ratio:
30.97:1 - Voltage:
12V to 48V DC
PERFORMANCE EXAMPLES
| Torque, Nm |
| RPM |
| Current, Amps |
| Power Out, Watts |
| Power In, Watts |
| Efficiency |
Low-speed 24V Option
| No Load | Peak Efficiency | Peak Power |
|---|---|---|
| 0 | 101.1 | 429.5 |
| 74 | 65 | 37 |
| 5.5 | 40 | 152.8 |
| 0 | 691 | 1660 |
| 132 | 961 | 3667 |
| 0% | 72% | 45% |
High-speed 24V Option
| No Load | Peak Efficiency | Peak Power |
|---|---|---|
| 0 | 97 | 385 |
| 109 | 95 | 54 |
| 8.4 | 58.2 | 206.2 |
| 0 | 967 | 2194 |
| 202 | 1398 | 4949 |
| 0% | 69% | 44% |
36V Option
| No Load | Peak Efficiency | Peak Power |
|---|---|---|
| 0 | 130 | 702.4 |
| 112 | 102 | 56 |
| 5.2 | 51.1 | 253.3 |
| 0 | 1387 | 4119 |
| 188 | 1841 | 9119 |
| 0% | 75% | 45% |
