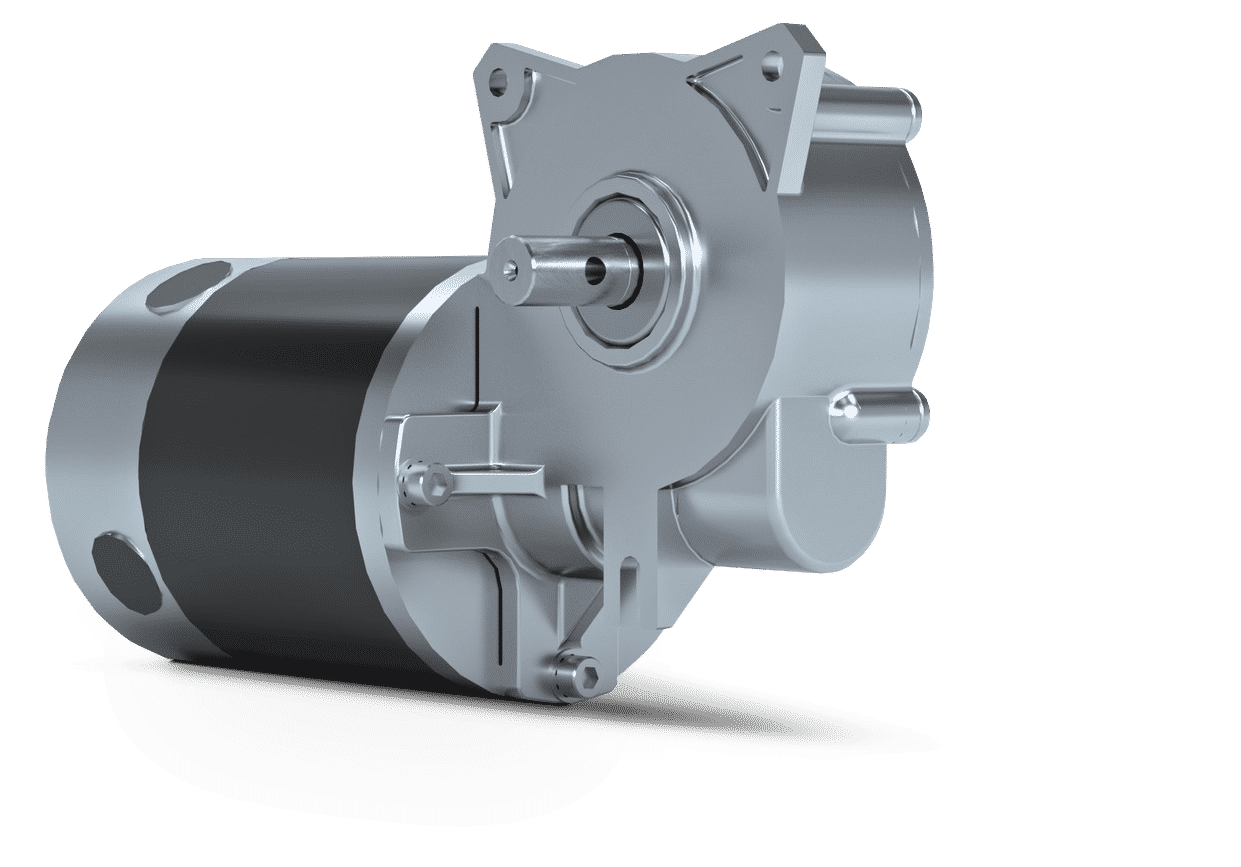

The ZEUS is a compact, low-cost right angle gearbox designed specifically for floor scrubber brush decks and stair lifts. The low-power drive system is completely sealed with O-rings and spring lip seals to minimize leaks, which also allows for outdoor use in some applications. The worm technology makes the drive quiet. It has a rugged die-cast aluminum design and the output shaft is high-strength carbon steel.
Markets
- Floor Care
- Stair Lift
FEATURES
- Motors:
Permanent magnet DC 4-pole, 3.98 in (101 mm) diameter, brushless DC option - Voltage:
24V to 36V DC - Output shaft:
Hardened carbon steel - Optional components:
Electromagnetic power-off brake, internal encoder - Reduction ratios:
14:1, 19:1, 21:1, and 37:1
PERFORMANCE EXAMPLES
Gear Scrub Brush Motor (14:1 @ 24V)
| No Load | Typical | High | |
|---|---|---|---|
| Torque, Nm | 0 | 7.5 | 10 |
| RPM | 214 | 190 | 181 |
| Current, Amps | 2 | 13.5 | 17.3 |
| Power Out, Watts | 0 | 150 | 190 |
| Power In, Watts | 48 | 323 | 414 |
| Efficiency | 0% | 46% | 46% |
Stair Lift Drive (37:1 @ 24V)
| No Load | Typical | High | |
|---|---|---|---|
| Torque, Nm | 0 | 10 | 20 |
| RPM | 82 | 76 | 71 |
| Current, Amps | 3 | 8.6 | 14.4 |
| Power Out, Watts | 0 | 80 | 149 |
| Power In, Watts | 72 | 207 | 347 |
| Efficiency | 0% | 39% | 43% |
